High-Q Porcelain P90 Capacitors - QP Series

Ultra-Stable, Low ESR Porcelain, RF Capacitors for Low-Frequency Power Applications (<100 MHz)

Johanson Technology’s new P90 High-Q Capacitors are designed for low-frequency, high-reliability RF and power applications. These non-magnetic surface mount MLCCs deliver low-loss performance with excellent Q factor stability below 100MHz—ideal for demanding designs in industrial, aerospace, and medical electronics.

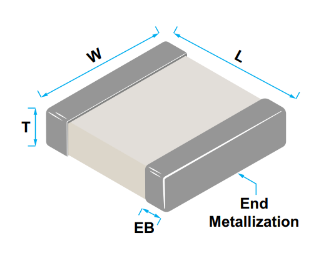

Available in standard EIA case sizes 1111, 2525, 3838 and 7676.

Manufactured in North America.

Features:

• Non-Magnetic Construction
• High Fire Porcelain Dielectric Body
• Highly Reliable, Low Loss Performance
• EIA Case Sizes: 1111, 2525, 3838 and 7676
• Low Frequency Power Handling Performance: <100MHZ
• Tape & Reel for Surface Mount Assembly 7” Reels Standard
• External Termination Layer on Chip: 100% Sn Standard (RoHS) and SnPb Optional
• Enhanced High-Q / Low Loss P90 – Lower Loss Than Standard NP0
• P90 Temperature Coefficient: -55°C to +150°C (-65°F to +302°F)
• Controlled Series Resonant Frequencies and Parallel Resonant Frequencies (SRF/PRF)


Common Applications:

• RF Matching and Filter Networks
• High Inductance Environments
• Decoupling, Bypass, and DC Block
• Cellular Base Station Equipment
• RF and Microwave Test Equipment
• MRI Coil Matching
• Broadband Wireless Equipment
• High Voltage RF Requirements
• High Power Radio and Radar
• Plasma Generator Equipment
• High Voltage RF Resonant Circuits


Advantages of a Low Loss Capacitor:

• Increased power output and higher efficiency from RF power amplifiers
• Reduced amount of heat generated through ultra-low ESR / High-Q
• Signal to noise ratio and overall noise temperature can be improved by lower losses
• Lower in-band insertion loss (S21) when used in filter networks
• Lower resistivity through the heat generation plane to transfer heat allowing higher power dissipation

Samples and Design Support

Contact Johanson Applications Engineers at: Ask a question.
